Broadcasting Equipment Multichannels Tuner to IP professional receiver with CI slot

Overview DMB-90E-CI Multi-channels Professional Receiver, support 6 modules in back panel,each module with 2*Independent Satellite DVB S/S2/S2X/DVBT/ATSC/ISDB-T Tuners input with 2*CI slots for CI standard CAM Card for decrypt the encrypted channels,total max 12 tuners input,4/8/12 tuners input option,IP output port by 4*MPTS +512* SPTS,it has also 2 ASI inputs...
-
+

DIGICAST

Intergrated Decoder Receiver/IRD

Out of stock

Overview

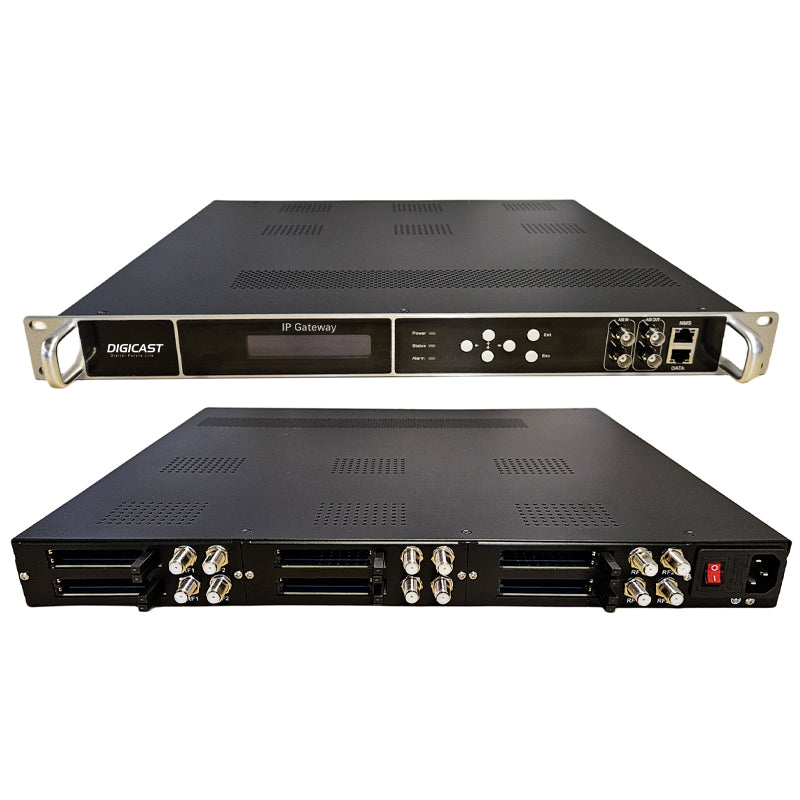

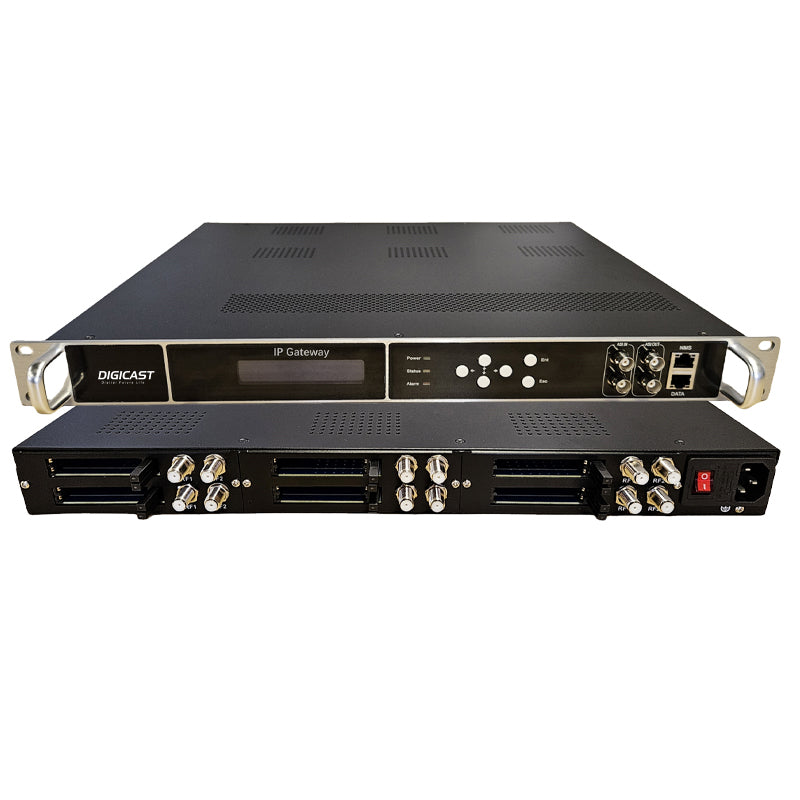

DMB-90E-CI Multi-channels Professional Receiver, support 6 modules in back panel,each module with 2*Independent Satellite DVB S/S2/S2X/DVBT/ATSC/ISDB-T Tuners input with 2*CI slots for CI standard CAM Card for decrypt the encrypted channels,total max 12 tuners input,4/8/12 tuners input option,IP output port by 4*MPTS +512* SPTS,it has also 2 ASI inputs for external TS's sources. It is integrated with tuner demodulation, which can demodulates from 4/ 8/ 12 channel tuners, then output the IP package through different IP address and ports.

DMB-90E series support convert various singal source, tuner, HDMI, ASI, IP mixed input to IP stream- UDP/ RTP/ RTSP for IPTV distribution,widely used in IPTV system, hotel, entertainment facilities, education broadcasting systems at schools and government buildings or any kinds of source signals convert to IP streaming, largely cost down the source gathering of Digital TV Broadcasting System and IPTV/OTT system which based on IP construction.

Being the ideal multi-channel professional receiver used for FTA (free to air) and Encrypted Tuners signal source capture from satellite/terrestrial.

Features

Input Version: 1: Up to 6 modules(12 Encrypted Tuners) input, each module 2*Tuner

input +2*CI slots, 4/8 Tuners input option

Max 12 channels input whatever which types input, pls consult with sales according your

application.

Different Tuner standard option from DVB-S/S2/S2X, DVB-T/T2, DVB-C, DTMB, ISDB-T/Tb, ATSC-T(DVB-SS2X is option and extra cost when chose DVB-SS2 tuner input)

Operation via LCD Screen and Web Management: Easy to read LCD color front panel that makes it easy to setup and monitor your channels, check firmware, and identify IP addresses without a computer.

Two separate ASI input for external TS multiplexing

GigE DATA port can be used for input and output

Capable of BISS descrambling

IP stream output: 4*MPTS +512 SPTS IP protocol UDP/RTP/RTSP

Low cost headend receiver for IPTV/OTT System

Low power consumption and high reliability with MTBF(Mean Time Between Failure) ≥

50000 Hours

Application

IPTV/OTT Headend equipment

 Advertising, monitoring, training and educating

 Insert all your digital TV RF programs source to IPTV Project

Enterprise, hotel, campus, hospital, restaurant, public place etc
