Overview

In a fast changing and highly competitive TV market, operators and TV service providers must deliver access to content on all screens, anytime, anywhere, while also reducing complexity and driving efficiency across all platforms.

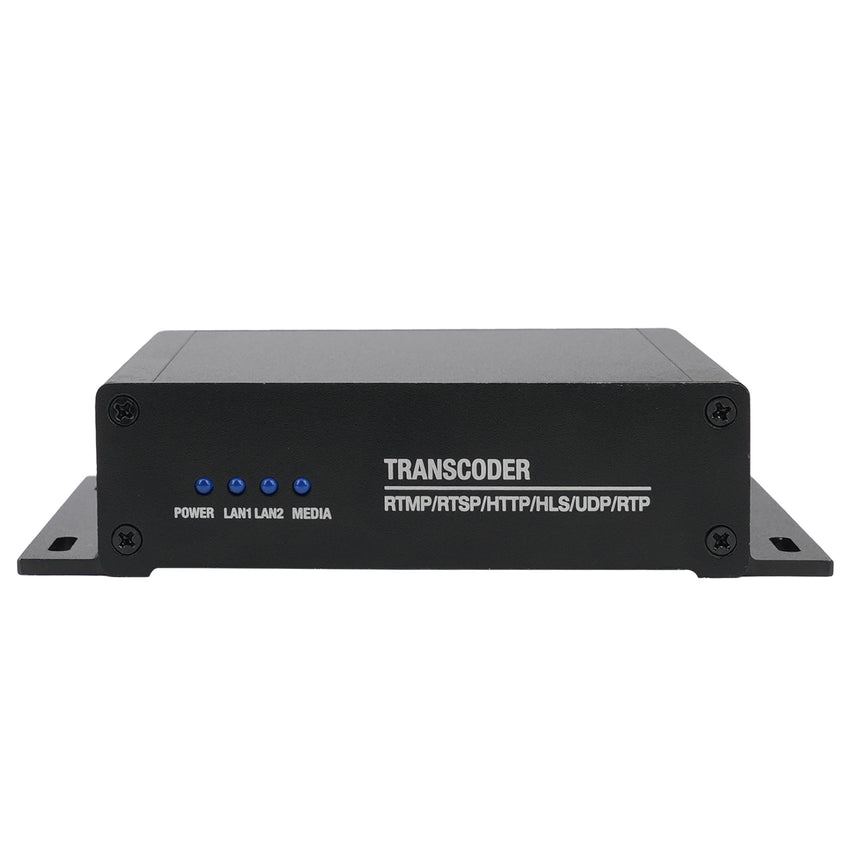

This transcoder support decoding,transcoding,decoding all in one,it adopts the latest H.264 and H.265 image processing technology,it’s transcoding part support 9 channels 1080P@25 fps(1 ch 4K@60 FPS/2*4K@30 FPS/4*1080P@60 FPS),after changed the resolution and bitrate,output IP for transmission by HTTP RTSP UDP unicast UDP multicast RTP RTMP HLS, etc.

It can also decode online network video streams (such as: rtsp://.... http://.... rtmp://.... udp://@.... hls, etc.) to the device and then connect to a monitor or TV through HDMI output to restore the image.Besides it support 36 channels forwarding function, change the Ip protocol for IP transmission,it will not change the resolution,bitrate only change the IP protocol in forwarding function.

Features

The highest resolution after encoding supports 4906x2160 (can be customizable)

◆Support input streams: HTTP/RTSP/RTP/RTMP/HTTP/UDP unicast, UDP multicast protocols

◆Support output streams: HTTP/HLS/RTSP/RTP/RTMP/HTTP/UDP unicast, multicast and other protocols

◆Code rate control CBR (constant code stream)/VBR (dynamic code stream) 16KBIT/S~12MBIT/S

◆Video packaging method: FFMPEG VLC

◆Transmission method: TCP, UDP, 1000M (RJ45 duplex network port)

◆Support WEB Chinese and English web page access, password change, and WAN remote management (WEB)

◆Supports Chinese and English OSD, picture overlay, supports adding company logo letters and symbols, etc., which can be displayed anywhere on the screen; adjustable coordinates: 1920x1080; available range of font size adjustment resolution: 8~72 range.

◆Supports DHCP to automatically obtain IP, supports one-click restoration, version upgrade and remote maintenance.

◆Audio supports both built-in and external modes, supports left and right channels, supports audio gain, and can adjust the volume independently

◆Support no video signal encoding

◆It takes effect immediately after the flow parameters and protocol settings are completed, without restarting (changes to IP require a restart to take effect)

◆Supports one-click restoration of default configuration

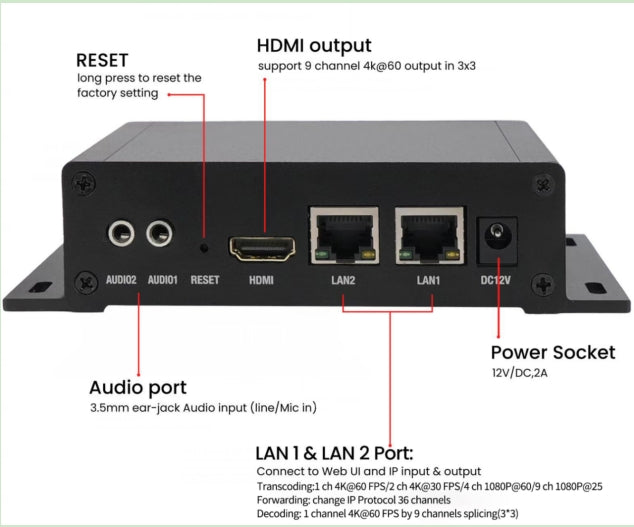

◆Support HDMI output

◆Support picture-in-picture encoding output
